Double membrane gas storage
The innovative solution for biogas plants
Double membrane gas holders provide innovative solutions for safe and efficient storage of biogas.
A double membrane gas holder is a flexible gas storage system consisting of two separate membranes. The inner membrane stores the gas, while the outer membrane is stabilised by the supporting air pressure and provides weather protection. The air-filled space between the membranes provides the necessary stability and leads to a safe and adaptable gas storage.
Specifications
| Material | Weather protection membrane made of PVC-coated polyester fabric |
| Gas storage membrane made of PELD and FPP | |
| Type of construction | Cone shape or spherical shape |
| Size in Ø | 10 - 40m / other tank sizes and special shapes on request |
| Tank volume | Volume table |
| Operating pressure | +2 - 3 mbar / -1.0 mbar (standard version) higher pressures possible on request |
| Mounting types | Stainless steel U profile with clamping hose system or double flat profile |
| Substructure | Belt / mesh substructure decoupled from fastening |
| Standard colours | RAL6026 opal green / RAL 6005 moss green / RAL 7038 agate grey / |
| RAL 7037 dust grey / RAL 7035 light grey / special colours on request | |
| Further specifications | Slurry-resistant material, high tear resistance |
| TRAS120 compliant components | |
| Special features | Additional heat protection membrane to reduce heat loss |
| Version with special membrane for odour reduction | |
| Belt tensioning system over weather protection membrane for even pressure distribution and stability | |
| Replacement foils available for your own and third-party systems | |
| All components can be replaced easily and separately |

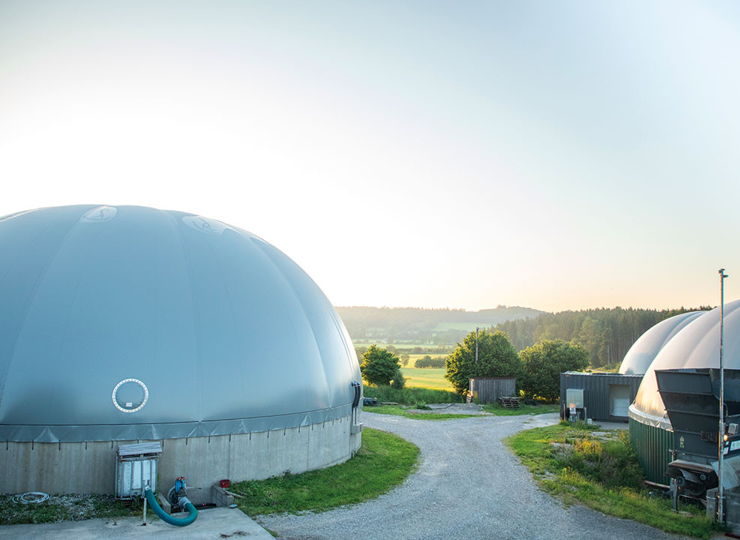

Gas storage tanks with double membrane

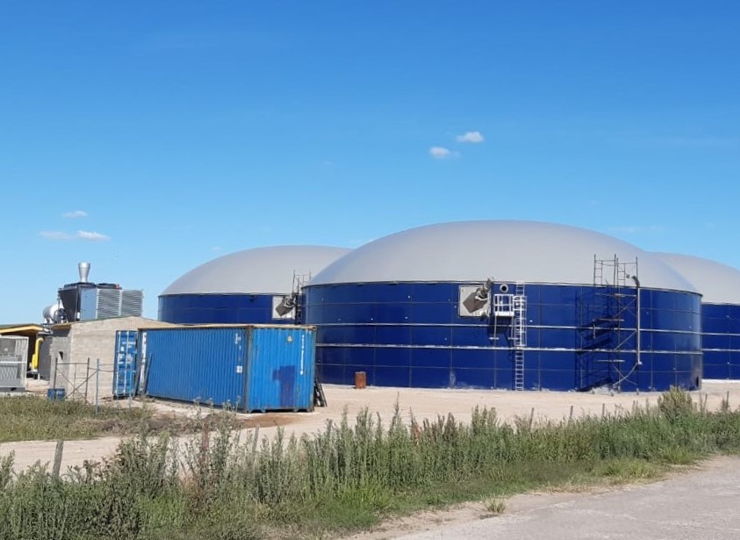

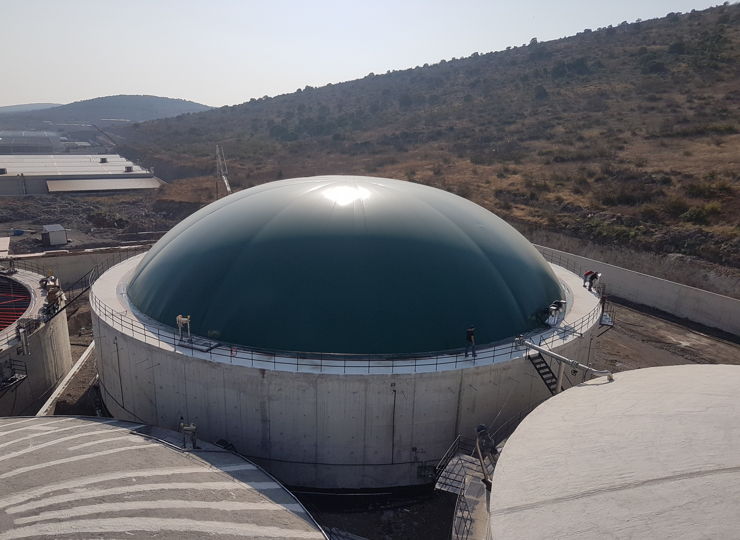

Regardless of tank type (installed on in-situ concrete, pre-fabricated or steel tanks or floor storage tanks), our double membrane gas storage tanks offer maximum flexibility and adaptability. They may be customised in terms of shape, design and colour in order to meet your requirements and needs.
Two different standard fastening systems are on offer: the stainless steel U profile with clamping hose system and the stainless steel double flat profile for installation on or at the side of the wall crown.
Advantages
- High quality standard of the double membrane gas storage tanks
- Sustainable due to recyclable FPP and PE material for the gas storage foil
- Observance of the conditions on site and sensible utilisation of existing components
